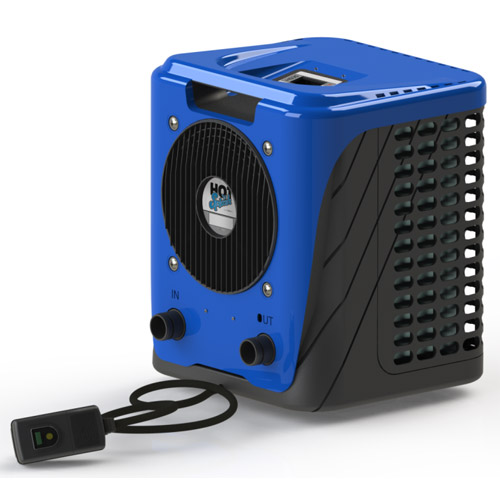

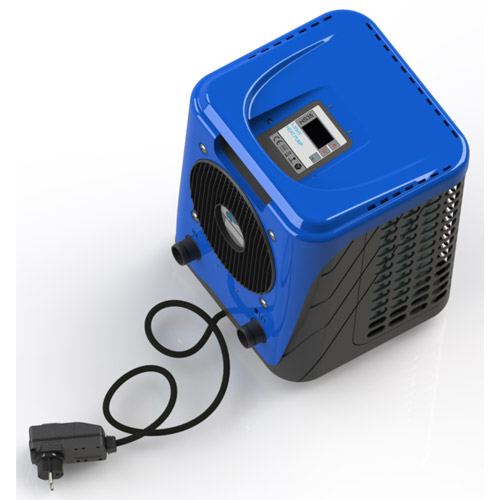

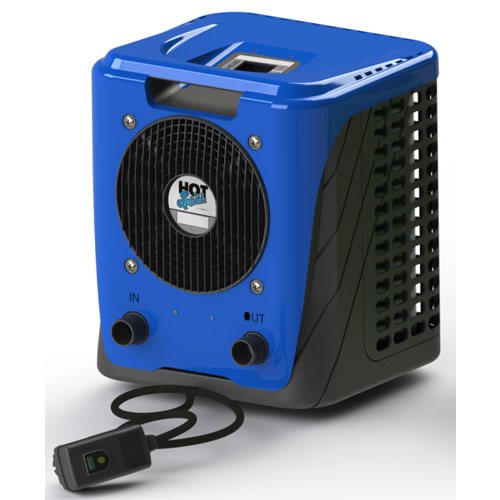

Hot Splash HS35 Plug & Play heat pump 3,35 kW

Children love water fun, but they get cold easily. A few times in and out of the pool drying up and going at it again, it says it all...

Duratech has the ideal solution for this with the Hot Splash heat pump.

The Hot Splash heat pump is the ideal solution for heating smaller pools. The connections are the same as for the small easy set, metal frame and prism frame pools.

You can therefore easily connect it yourself.

No extra fittings are needed to connect to Intex pools with 32 mm diameter pipes.

Dimensions: 29 cm x 31 cm x 37 cm.

Power: 3,35 kW.

Suitable for above ground pools up to 12 m³ or 12000 litres of water.

Some remarkable features of the Hot Splash heat pump:

- High energy efficiency (COP up to 6) resulting in low costs.

- Environmentally friendly R32 gas.

- Full-flow technology.

- Intuitive and easy to use control panel.

- 3 buttons.

- Operates in an ambient temperature from +10°C.

- Titanium heat exchanger resists corrosion by pool chemicals.

Place the heat pump on a flat and solid surface, do not block the fan, leave at least 1,5 metres free space in the discharge area of the fan.

Treatment of the water, possibly if you have a salt water system, is done after the heat pump.

It is normal for condensation water to run out of the heat pump.

This is not a fault or leak in the heat pump, especially when the humidity is high this can be a bit more than other days.

The Hot Splash heat pump will be placed after the filter pump, so on the input the filter pump will be connected and on the output the flexible tube that goes back to the pool for the input of the heated water.

Fan direction: horizontal.

Heat exchanger: titanium.

Water connection: 32 mm.

Weight: 15 kg.

When the heat pump is delivered by shipping, we recommend that you let it rest for 48 hours in an upright position before using it.

If you collect it from us, it must be transported upright.
